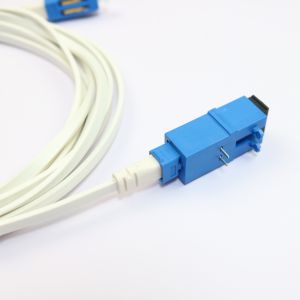

Product Description:
Indoor on-site optical hybrid cable is a hybrid cable with
integrated fiber optic and power transmission copper wires, which
is suitable for indoor conduit cabling, on-site fiber optic
connection and power supply scenarios for terminal equipment.
It is suitable for indoor conduit wiring, terminal equipment
on-site fiber optic connection and power supply scenarios,
providing data transmission and equipment remote power supply
functions.
Features:
●Optical and electrical integration, at the same time to provide
data transmission and equipment remote power supply function
●Similar wires can be wired, spliced and terminated on site
●Factory prefabricated or field terminated SC/UPC optoelectronic
connector
●Superior bending performance and good flexibility, easy to
construct.
Technical Parameters:
| Installation Environment | Indoor |
| Port | Double-ended pre-assembled SC/UPC optical connectors |
| Operating Temperature | -10 ℃~+60 ℃ |
| Operating Humidity | 0%～95%(+40 ℃) |
| Storage Temperature | -15℃~+60 ℃ |
| Rated Operating Voltage (DC) | 48~56V |
| Rated Working Current (DC) | Cable #1 0.25 A, Cable #2 0.5 A |
| Maximum Load Distance | 56 V power supply, terminal power 15 W Carrying distance: 1 # cable ≥ 150 meters, 2 # cable ≥ 300 meters |
| Flame retardant grade | UL94-VO |
Indoor Field Optical Hybrid Cable Dimensional Description
| Fiber | Fiber | G.657A2 ,1core |
| optoelectronics | material | Stranded Copper Cable #1 7 x 0.16 mm x 2 Cable #2 14 x 0.16 mm x 2 |
| Lead spacing | 1.50±0.05 mm (Key size) |
| Hybrid fiber optic cable outer jacket | material | White: Low Smoke Halogen Free |
| non-self-supporting | 3.0 mm x 2.0 mm |
| Self-supporting | 5.0 mm x 2.0 mm |
| Optical Hybrid Cable Connector Length | 5/10/15/20/25/30/35/40/45/50/55/60/65/70/75/80 m/Support
customization |
Connector Optical and Mechanical Properties
| Connector Type | Double-ended SC/UPC Optical Hybrid Cable Connector |
| Size(H×W×D) | 8.8 mm x 8.2 mm x 40.5 mm |
| insertion loss | ≤0.50 dB |
| return loss | ≥50 dB |
| tensile | 1 # cable: ≥ 40 N, 2 # cable: ≥ 50 N |
| Number of insertions and removals | 50 times |
Cable electrical performance index
| Insulation resistance | ≥500 mΩ, DC 300V at room temperature, 1 min. |
| Dielectric withstand voltage | 1000V,1 min,leakage current less than 0.5mA |
| Conductivity test | No short circuit or open circuit, room temperature |
| Contact resistance | Rtest≤ (Rcable)+2×50 mQ |
Applications:
YOGEL's Hybrid Components, with the model number SC-XC, are
versatile products that can be used in a variety of applications
and scenarios. These components are ideal for situations where
different types of optical connectors need to be integrated
seamlessly, making them perfect for hybrid assemblies.
One common application occasion for YOGEL's Hybrid Components is in
telecommunications systems where multiple types of fiber optic
connectors are used. These components allow for the interspersion
of various connector types, ensuring smooth data transmission and
optimal performance.
Another scenario where the Hybrid Components excel is in data
centers where different networking equipment may require the
mingling of parts with XC/UPC-SC/UPC adapters. YOGEL's components
provide a reliable and efficient solution for connecting different
devices with ease.
YOGEL's Hybrid Components are ISO9000 certified, guaranteeing high
quality and performance. They are manufactured in CHINA and have a
minimum order quantity of 1, with prices open for negotiation.
Payment terms include L/C, T/T, and Western Union, making it
convenient for customers to make transactions.
With a supply ability of 100 pieces per month and packaging details
in a carton box, YOGEL's Hybrid Components are a reliable choice
for those in need of specialty optical products. The insertion loss
of these components is ≤0.3dB, ensuring minimal signal loss during
data transmission.
These Hybrid Components come in a range of colors including green,
blue, and aqua, with the option for other custom colors as well.
They can withstand storage temperatures ranging from -40℃ to +70℃,
making them suitable for a variety of environments and conditions.
Support and Services:
Our Product Technical Support and Services for the Hybrid
Components product are designed to assist you with any issues or
questions you may have regarding the installation, operation, or
maintenance of our products.
Our team of experts is available to provide guidance and
troubleshooting to ensure that your Hybrid Components are
functioning at their best performance.
In addition to technical support, we also offer a range of services
such as product upgrades, training programs, and maintenance
packages to help optimize the performance and longevity of your
Hybrid Components.
Packing and Shipping:
Product Name: Hybrid Components
Package Contents:
- Hybrid Components x 1
- Instruction Manual x 1
Shipping Information:
- Shipping Method: Standard Shipping
- Estimated Delivery Time: 5-7 business days
FAQ:
Q: What is the brand name of the Hybrid Components product?
A: The brand name is YOGEL.
Q: What is the model number of the Hybrid Components product?
A: The model number is SC-XC.
Q: Where is the Hybrid Components product manufactured?
A: The product is manufactured in CHINA.
Q: What certifications does the Hybrid Components product have?
A: The product is certified with ISO9000.
Q: What are the available payment terms for purchasing the Hybrid
Components product?
A: The available payment terms are L/C, T/T, and Western Union.
